High Density MPO Patch Panel Specification

Brand Name : DF/OEM/Nuetral

Model Number : High Density MPO Patch Panel Specification

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, /Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : High Density MPO Patch Panel Specification

Product Size : 482.6mm*464.9mm*44.2mm(1U)

Material : SPCC, 1.2mm Black (RAL9005)

Weight : 6.8kg

Compliant to : RoHS, Reach/SVHC

Contact Now

High Density MPO Patch Panel Specification
Product Overview

To optimize data center cabinet space utilization, we offer comprehensive high-density cabling solutions including 1U, 2U, and 4U optical fiber distribution boxes, complemented by 12-core MPO-LC module boxes, 8-core MPO-LC module boxes, and 4×MPO adapter panels.

Standards Compliance
  • TIA/EIA-568
  • RoHS
  • ISO9001
Key Features
  • Compatible with HDA and EDA cabling systems for 10G/40G/100G applications
  • Rack-mounted design for optimal cable protection, management, and organization
  • High-density capacity: 144 cores (1U), 288 cores (2U), 576 cores (4U)
  • Modular internal installation eliminates welding requirements and enhances wiring efficiency
  • Smooth sliding rail mechanism for straight, effortless extension
  • Three-layer tray system accommodating 4 module boxes or MPO adapter panels per layer (12 total)
Technical Specifications
Size 482.6mm × 464.9mm × 44.2mm (1U)
Material SPCC, 1.2mm Black (RAL9005)
Weight 6.8KG

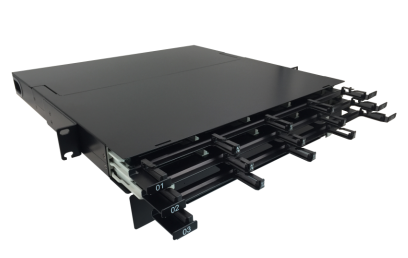

Product Images
High Density MPO Patch Panel Specification High Density MPO Patch Panel Specification High Density MPO Patch Panel Specification
Why Choose TAKFLY
  • 25+ years of fiber optic manufacturing expertise
  • 450+ assembly workers with 3+ years of experience
  • 10+ dedicated R&D engineers
  • 16 German injection machines and production lines
  • 30+ testing instruments including OTDR, 3D, VFL, IL&RL testers, tension strength testers, and more
  • OEM branding services available
  • Regular participation in global exhibitions: OFC, ECOC, CommunicAsia, and others
Quality Control Process
  • Raw material inspection before production
  • Full inspection after each manufacturing process
  • Comprehensive half-stage production checks
  • Finished product inspection prior to packaging
  • Pre-shipment quality verification
Delivery Information
  • Samples: 1-3 working days
  • Mass production: 3-7 working days
  • Packaging options: Plastic bags, cartons, and pallets available
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings.
High Density MPO Patch Panel Specification
If you're interested in our products or have any questions, feel free to contact us at any time!
